Multimodal imaging supporting the pathophysiology of white dot syndromes
Journal of Ophthalmic Inflammation and Infection volume 11, Article number: 32 (2021)
White dot syndromes (WDS) represent a heterogeneous group of inflammatory diseases, primarily affecting the outer retina, choriocapillaris and choroid. Recent advances in the field of ocular imaging and development of new technologies, including optical coherence tomography angiography (OCT-A), have allowed a better characterization of the morphology of these conditions. This review will analyse the WDS from an imaging-based perspective, providing a better understanding of the pathophysiology underlying these disorders.
White dot syndromes (WDS) represent a heterogeneous group of inflammatory diseases, primarily affecting the outer retina, choriocapillaris and choroid. WDS include conditions such as multiple evanescent white dot syndrome (MEWDS), punctate inner choroidopathy (PIC), multifocal choroiditis (MFC), acute posterior multifocal placoid pigment epitheliopathy (APMPPE), serpiginous choroiditis and birdshot retinochoroiditis (BRC). The diseases are characterized by a distinctive clinical phenotype derived from the ocular structures involved in the inflammatory process. As in the case of posterior uveitis, multimodal imaging plays a key role in the assessment of a disease, documenting the precise localization of lesions and different levels of tissue involvement. The better characterization of disease morphology, also derived from recent advances in the field of ocular imaging and development of new technologies, has resulted in a better understanding of disease pathophysiology. Multimodal imaging includes several imaging modalities, such as fundus fluorescein angiography (FFA), indocyanine angiography (ICGA), fundus autofluorescence (FAF), optical coherence tomography (OCT) and, more recently, OCT angiography (OCT-A). In addition to providing useful information for characterisation of disease phenotype and diagnosis, these techniques allow evaluation of disease activity, detection of ocular complications and monitoring of response to treatment.
The aim of this review is to analyse the WDS from an imaging-based perspective, providing a better understanding of morphology and pathophysiology of this spectrum of diseases.
Multiple evanescent white dot syndrome (MEWDS)
MEWDS is an idiopathic, acute, unilateral disorder, commonly affecting healthy females in their second to forth decade of life. The disease clinically manifests with yellowish deep retinal lesions, commonly located at the posterior pole and extending to the retinal mid-periphery (Fig. 1A). Mild intraocular inflammation can be present in form of vitritis and/or optic disc oedema. Patients usually complain of sudden and rapid visual loss, dyscromatopsia, photopsias and scotomas. Prodromal flu-like symptoms might precede the ocular manifestations. The disease has a self-limiting course and tends to resolve within weeks with no sequelae and no need for treatment.

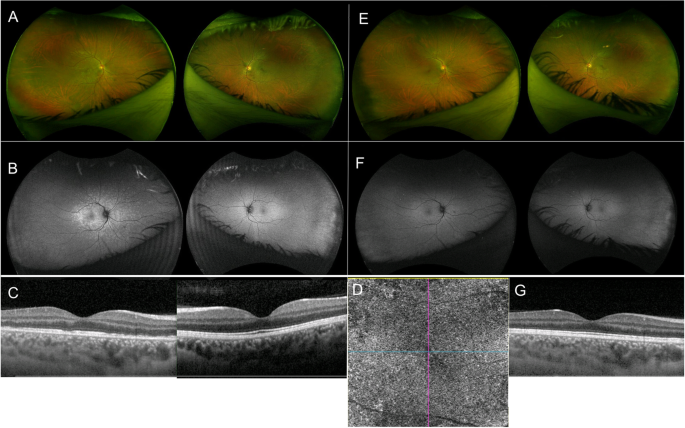

MEWDS primary involves the outer retinal layers, including the photoreceptors and the ellipsoid zone, with sparing of the choriocapillaris [1,2,3,4]. In the acute phase the lesions appear hyperautofluoresecent on FAF (Fig. 1B). They show characteristic early “wreath-like” hyperfluorescence on FFA, which persists into late frames throughout the exam. Disc hyperfluorescence can be present. On ICGA, lesions typically show late hypofluorescence [5,6,7]. OCT detects marked disruption of the ellipsoid zone associated with hypertrophy of the underlying retinal pigment epithelium (RPE) (Fig. 1C). The lesions involving the ellipsoid zone/RPE correspond to the hyperautofluorescent lesions seen on FAF, the hyperfluorescent lesions detected on FFA and the hypofluorescent spots seen on ICGA, and it is important to note that no areas of flow void are detected on OCT-A (Fig. 1D), demonstrating the sparing of the choroid and, in particular, of the choriocapillaris [1,2,3,4]. The hypofluorescent lesions seen in the late frames of ICGA can thus be explained not by choriocapillaris hypoperfusion, but by RPE abnormality secondary to outer retinal involvement, resulting in changes in the indocyanine green uptake by the RPE, which normally determines the physiological late background hyperfluorescence . However, two cases were recently reported, in which OCT-A showed transient areas of flow void at the level of the choriocapillaris . These findings do not establish the choriocapillaris as the primary site of the disease process and could very well represent a secondary response to a RPE dysfunction. Near-infrared fundus autofluorescence (NIR-FAF) show a characteristic foveal “granularity” . It is noteworthy that foveal granularity is primarily appreciated as a uniform and distinguishing clinical feature of MEWDS.
Acute posterior multifocal Placoid pigment Epitheliopathy (APMPPE) and related placoid disorders
APMPPE is an idiopathic, acute, commonly bilateral, disorder affecting young healthy adults. The disease clinically manifests with multifocal, yellowish creamy, placoid lesions, located at the posterior pole (Fig. 2A). Patients complain of bilateral visual loss, photopsias and paracentral scotomas. The lesions tend to progressively fade over the weeks, resulting in hyperpigmentation and chorioretinal atrophy, with potential persistent damage to visual function.
APMPPE is a disease primarily affecting the choriocapillaris and the inner choroid, resulting in secondary changes to the outer retina and RPE [10,11,12,13]. The pathophysiology of the disease is supported by the characteristic findings on imaging. APMPPE is characterized by hypofluorescent lesions in the early phases of FFA, becoming hyperfluorescent in the late frames, and hypofluorescent spots across all phases of ICGA (Fig. 3 A,B) [11,12,13]. On OCT, the lesions appear as disruption of the outer retinal and ellipsoid zone, with hyperreflectivity of the outer retinal layers and RPE (Fig. 2B), resulting in hypoautofluorescent on FAF due to RPE dysfunction/damage . OCT-A demonstrates that such outer retinal changes co-localized with greater areas of decreased flow at the level of choriocapillaris, that in turn correlate with the lesions detected on FFA and ICGA [15, 16]. The findings thus support the theory that APMPPE is a disorder primarily caused by ischemic events occurring at the level of the choriocapillaris and secondary affecting the outer retina and RPE [11, 15, 16]. Area of focal photoreceptor/RPE atrophy can be detected on OCT after resolution of the lesions, with inactive lesions showing hyperfluorescence on FFA, due to window defects derived from RPE atrophy, hypofluorescence on ICGA and diffuse hypoautofluorescence on FAF.
Inner choroid is the primary site of disease pathogenesis in APMPPE related placoid disorders, including persistent placoid maculopathy (PPM) and relentless placoid chorioretinitis (RPC) . PPM is an idiopathic, bilateral chorioretinopathy most commonly affecting adult Caucasian males. The disease clinically manifests with plaque-like, white/yellowish, foveal lesions, characterized by early hypofluorescence and late staining on FFA, and persistent hypofluorescence on ICGA . Choriocapillaris flow reduction appearing as hyposignal on OCT-A, corresponding to the hypoperfusion seen on FFA and ICGA, supports the hypothesis of impaired choroidal vasculature with nonperfusion of the choriocapillaris, compared to alternative leading mechanism of blockage of choroidal fluorescence by inflammatory deposits .
RPC, also known as ampiginous choroiditis, is a condition resembling both APMPPE and serpiginous choroiditis, but characterised by atypical retinal distribution. The disease manifests with bilateral, creamy lesions, localized at the level of the RPE. In contrast to APMPPE which is limited to the posterior pole, RPC is characterized by the presence of > 50 to hundreds of lesions, located anteriorly and posteriorly to the equator . The clinical course is characteristically prolonged and relapsing. FFA reveals hypofluorescent lesions in the early phases of FFA with late staining, and hypofluorescent spots across all phases of ICGA. OCT-A provides evidence of flow reduction at the level of the choriocapillaris and outer choroid .
In conclusion, OCT-A findings support the hypothesis of primary involvement of the choriocapillaris and inner choroid in APMPPE and related placoid disorders and may help elucidate further the underlying pathogenesis providing valuable information related to the duration and recurrence of choroidal flow reduction associated with this disease spectrum.
Multifocal choroiditis (MFC) and punctate inner Choroidopathy (PIC)
MFC is a chronic, bilateral, inflammatory disorder, manifesting with recurrent episodes of intraocular inflammation, including anterior uveitis and vitritis, associated with yellowish subretinal lesions located at the posterior pole and in periphery. PIC is an idiopathic, inflammatory condition characterized by bilateral, small, discrete and well-defined, yellowish chorioretinal lesions located at the posterior pole, with no associated signs of intraocular inflammation. Both diseases most commonly occur in young patients, especially myopic women in their third to fifth decade of life. Symptoms include scotomas, blurred vision and photopsias. Over time, the inflammatory lesions evolve into chorioretinal scars with variable degree of pigmentation (Fig. 4A). Visual loss might occur due to foveal involvement or development of choroidal neovascularization.
Considering the similarities, MFC and PIC might be considered part of the same disease spectrum [19,20,21,22]. Both the diseases involve the choroid, RPE, and outer retina. Findings on OCT scan show elevation of the RPE with sub-RPE material of intermediate reflectivity and surrounding disruption of the outer retina (Fig. 4C) [23, 24]. Active inflammatory lesions appear hypofluorescent in the early phases of FFA with mild late staining, and hypofluorescent on ICGA across all frames . The same lesions manifest with hypoautofluorescent spots with hyperautofluorescent margins on FAF . Once healed, atrophic lesions are characterized by hyperfluorescence as per window defect, with atrophy of the RPE and outer retina on OCT scan (Fig. 4B) . OCT-A demonstrates well-demarcated areas of reduced flow at the level of the choriocapillaris, co-localizing with active inflammatory lesions corresponding to RPE elevations on OCT scan and hypofluorescent spots on ICGA [25,26,27]. Whether the changes in the outer retina develop secondary to a primary choroidal involvement or the choriocapillaris is affected following the inflammatory process primarily occurring in the overlying retina has not been elucidated yet.
Serpiginous choroiditis is a bilateral, chronic, progressive, ocular disorder, manifesting with a characteristic clinical phenotype and course. Greyish subretinal lesions, which start from the peri-papillary region and spread centrifugally, give the disease the characteristic serpiginous pattern. Men are affected slightly more than women. Symptoms include drop in vision, paracentral scotomas, metamorphopsias and photopsias. Over time, active lesions evolve into pigmented chorioretinal scars. However, recurrences occurring weeks to years after the initial episode are common, with reactivation usually manifesting at the border of the atrophic lesions.
The disease is considered to primarily affect the choriocapillaris with secondary involvement of the outer retina and RPE. Active lesions show early hypofluorescence and late hyperfluorescence on FFA, and hypofluorescence across all frames on ICGA . Areas of flow void at the level of the choriocapillaris on OCT-A have been demonstrated to co-localize with the hypofluorescent spots on ICGA, confirming the role of reduced choroidal perfusion in the pathogenesis of the disease [29,30,31]. OCT in the active phase shows hyper-reflectivity and thickening of the outer retina with disruption of the ellipsoid zone, evolving into decreased retinal thickness and RPE atrophy in the inactive phase . On FAF, active lesions appear hyperautofluorescent, progressively evolving into hypoautofluorescent once healed .
Birdshot retinochoroiditis (BRC)
BRC is a bilateral, progressive, asymmetrical, disease, independently affecting both the retina and the choroid. Retinal involvement is characterized by inflammatory vasculitis, potentially complicated by macular oedema. Choroiditis manifests with multiple, yellowish, subretinal lesions, radiating from the optic nerve to the retina periphery, more concentrated in the infero-temporal area (Fig. 5) [34, 35]. Middle-aged Caucasian women are characteristically affected by the disorder, complaining of floaters, blurriness, photopsias and decreased vision.
Retinal involvement is well detected by FFA, which shows optic nerve hyperfluorescence, vascular leakage and macular leakage (Fig. 6A). Active choroidal inflammatory lesions appear hypofluorescent in the early phases of FFA with subtle late staining, and hypofluorescent in the early and mid-phases of ICGA, becoming isofluorescent in the late angiographic phase [36, 37]. To support the primary involvement of choroidal stroma in the disease, OCT-A identified areas of flow void in the Haller layer, co-localizing with the hypofluorescent spots on ICGA, with initial sparing of the choriocapillaris . With progression of the disease, the inflammatory damage can extend from the choroidal stroma to the inner choroid, and secondary affects the choriocapillaris and the RPE. At this stage hypofluorescent spots are detected throughout the ICGA (Fig. 6B) and OCT-A demonstrates full-thickness areas of flow void in the choroid, involving both the stroma and the choriocapillaris.
To summarize, although WDS represent a spectrum of diseases with similar clinical features, they are unique from one another. The name WDS may actually not be the best way of referring to them. Multimodal imaging and recent developments in new technologies, including OCT-A, have provided a better characterization of tissues involvement and disease morphology, allowed their categorization into choroidal syndromes with primary stromal involvement, choriocapillaritis or diseases with primary outer retinal pathology. This has resulted in a better understanding of the pathophysiology at the base of WDS,
Availability of data and materials
White dot syndromes
Retinal pigment epithelium
Multiple evanescent white dot syndrome
Punctate inner choroidopathy
Acute posterior multifocal placoid pigment epitheliopathy
Optical coherence tomography angiography.
Near-infrared fundus autofluorescence
Optical coherence tomography
Fundus fluorescein angiography
Indocyanine green angiography
Pichi F, Srvivastava SK, Chexal S, Lembo A, Lima LH, Neri P et al (2016) En face optical coherence tomography and optical coherence tomography angiography of multiple evanescent white dot syndrome: new insights into pathogenesis. Retina 36(Supplement 1):S178–S188. https://doi.org/10.1097/IAE.0000000000001255
Yannuzzi NA, Swaminathan SS, Zheng F, Miller A, Gregori G, Davis JL, Rosenfeld PJ (2017) Swept-source OCT angiography shows sparing of the choriocapillaris in multiple evanescent white dot syndrome. Ophthal Surg Lasers Imaging Retina 48(1):69–74. https://doi.org/10.3928/23258160-20161219-10
Pereira F, Lima LH, de Azevedo AGB, Zett C, Farah ME, Belfort R (2018) Swept-source OCT in patients with multiple evanescent white dot syndrome. J Ophthal Inflamm Infect 8(1):16. https://doi.org/10.1186/s12348-018-0159-2
Zicarelli F, Mantovani A, Preziosa C, Staurenghi G (2019) Multimodal imaging of multiple evanescent white dot syndrome: a new interpretation. Ocul Immunol Inflamm 17
Dell’omo R, Wong R, Marino M, Konstantopoulou K, Pavesio C (2010) Relationship between different fluorescein and indocyanine green angiography features in multiple evanescent white dot syndrome. Br J Ophthalmol 94(1):59–63. https://doi.org/10.1136/bjo.2009.163550
Herbort CP, LeHoang P, Guex-Crosier Y (1998) Schematic interpretation of indocyanine green angiography in posterior uveitis using a standard angiographic protocol. Ophthalmology. 105(3):432–440. https://doi.org/10.1016/S0161-6420(98)93024-X
Ie D, Glaser BM, Murphy RP, Gordon LW, Sjaarda RN, Thompson JT (1994) Indocyanine green angiography in multiple evanescent white-dot syndrome. Am J Ophthalmol 117(1):7–12. https://doi.org/10.1016/S0002-9394(14)73008-9
Khochtali S, Dridi T, Abroug N, Ksiaa I, Lupidi M, Khairallah M (2020) Swept-source optical coherence tomography angiography shows Choriocapillaris flow reduction in multiple evanescent white dot syndrome. J Curr Ophthalmol 32(2):211–215. https://doi.org/10.4103/JOCO.JOCO_107_20
Mantovani A, Invernizzi A, Staurenghi G, Herbort CP Jr (2019) Multiple evanescent white dot syndrome: a multimodal imaging study of foveal granularity. Ocul Immunol Inflamm 27(1):141–147. https://doi.org/10.1080/09273948.2017.1353104
Park D, Schatz H, McDonald HR, Johnson RN (1995) Acute multi-focal posterior placoid pigment epitheliopathy: a theory of pathogenesis. Retina. 15:351e352
Mrejen S, Sarraf D, Chexal S et al (2016) Choroidal involvement in acute posterior multifocal placoid pigment epitheliopathy. Ophthalmic Surg Lasers Imaging Retina. 47:20e26
Yuzawa M, Kawamura A, Matsui M (1994) Indocyanine green video angiographic findings in acute posterior multifocal placoid pigment epitheliopathy. Acta Ophthalmol 72:128e133
Park D, Schatz H, McDonald HR, Johnson RN (1995) Indocyanine green angiography of acute multifocal posterior placoid pigment epitheliopathy. Ophthalmology. 102:1877e1883
Souka AA, Hillenkamp J, Gora F, Gabel VP, Framme C (2006) Correlation between optical coherence tomography and autofluorescence in acute posterior multifocal placoid pigment epitheliopathy. Graefes Arch Clin Exp Ophthalmol 244(10):1219–1223. https://doi.org/10.1007/s00417-006-0343-1
Furino C, Shalchi Z, Grassi MO et al (2019) OCT angiography in acute posterior multifocal Placoid pigment Epitheliopathy. Ophthalmic Surg Lasers Imaging Retina 50(7):428436
et al (2017) Optical coherence tomography angiography reveals Choriocapillaris flow reduction in Placoid Chorioretinitis. Ophthalmol Retina 1(1):77–91. https://doi.org/10.1016/j.oret.2016.08.008Klufas MA, Phasukkijwatana N, Iafe NAet al Optical coherence tomography angiography reveals Choriocapillaris flow reduction in Placoid Chorioretinitis. Ophthalmol Retina 2017;1(1):77–91, DOI: https://doi.org/10.1016/j.oret.2016.08.008
Kolomeyer AM, Brucker AJ (2018) PERSISTENT PLACOID MACULOPATHY: a systematic review. Retina. 38(10):1881–1895. https://doi.org/10.1097/IAE.0000000000002284
Mirza RG, Jampol LM (2012) Relentless placoid chorioretinitis. Int Ophthalmol Clin 52(4):237–242. https://doi.org/10.1097/IIO.0b013e31826686a3
Spaide RF, Goldberg N, Freund KB (2013) Redefining multifocal choroiditis and panuveitis and punctate inner choroidopathy through multimodal imaging. Retina. 33(7):1315–1324. https://doi.org/10.1097/IAE.0b013e318286cc77
Raven ML, Ringeisen AL, Yonekawa Y, Stem MS, Faia LJ, Gottlieb JL (2017) Multi-modal imaging and anatomic classification of the white dot syndromes. Int J Retina Vitreous 3:12 Published 2017 Mar 20
Campos J, Campos A, Mendes S, Neves A, Beselga D, Sousa JPC (2014) Punctate inner choroidopathy: a systematic review. Med Hypothesis Discov Innov Ophthalmol 3(3):76–82
Li J, Li Y, Li H, Zhang L (2019) Imageology features of different types of multifocal choroiditis. BMC Ophthalmol 19(1):39. https://doi.org/10.1186/s12886-019-1045-x
Zarranz-Ventura J, Sim DA, Keane PA, Patel PJ, Westcott MC, Lee RW, Tufail A, Pavesio CE (2014) Characterization of punctate inner choroidopathy using enhanced depth imaging optical coherence tomography. Ophthalmology 121(9):1790–1797. https://doi.org/10.1016/j.ophtha.2014.03.011
Dolz-Marco R, Fine HF, Freund KB (2017) How to differentiate myopic choroidal neovascularization, idiopathic multifocal choroiditis, and punctate inner Choroidopathy using clinical and multimodal imaging findings. Ophthalmic Surg Lasers Imaging Retina 48(3):196–201. https://doi.org/10.3928/23258160-20170301-01
Thompson IA, Caplash S, Akanda M et al (2020) Optical coherence tomography angiography changes in choroidal vasculature following treatment in punctate inner Choroidopathy [published online ahead of print, 2020 Feb 14]. Ocul Immunol Inflamm:1–7. https://doi.org/10.1080/09273948.2019.1705986
Kim EL, Thanos A, Yonekawa Y, Todorich B, Wolfe J, Randhawa S, Faia LJ (2017) Optical coherence tomography angiography findings in punctate inner choroidopathy. Ophthalmic Surg Lasers Imaging Retina 48(10):786–792. https://doi.org/10.3928/23258160-20170928-02
Hampton BM, Aderman CM, Flynn HW Jr, Sridhar J (2017) Optical coherence tomography angiography of punctate inner Choroidopathy. Case Rep Ophthalmol Med 2017:4754231
Giovannini A, Mariotti C, Ripa E, Scassellati-Sforzolini B (1996) Indocyanine green angiographic findings in serpiginous choroidopathy. Br J Ophthalmol 80(6):536540
Pakzad-Vaezi K, Khaksari K, Chu Z, Van Gelder RN, Wang RK, Pepple KL (2018) Swept-source OCT angiography of serpiginous choroiditis. Ophthalmol Retina. 2(7):712–719. https://doi.org/10.1016/j.oret.2017.11.001
El Ameen A, Herbort Jr CP. Serpiginous choroiditis imaged by optical coherence tomography angiography. Retin Cases Brief Rep; December 28, 2016
Desai R, Nesper P, Goldstein DA, Fawzi AA, Jampol LM, Gill M (2018) OCT angiography imaging in serpiginous Choroidopathy. Ophthalmol Retina 2(4):351359
Bouchenaki N, Cimino L, Auer C, Tao Tran V, Herbort CP (2002) Assessment and classification of choroidal vasculitis in posterior uveitis using indocya- nine green angiography. Klin Monatsbl Augenheilkd 219(4):243–249. https://doi.org/10.1055/s-2002-30661
Yeh S, Forooghian F, Wong WT, Faia LJ, Cukras C, Lew JC, Wroblewski K, Weichel ED, Meyerle CB, Sen HN, Chew EY, Nussenblatt RB (2010) Fundus autofluorescence imaging of the white dot syndromes. Arch Ophthalmol 128(1):46–56. https://doi.org/10.1001/archophthalmol.2009.368
Shah KH, Levinson RD, Yu F, Goldhardt R, Gordon LK, Gonzales CR, Heckenlively JR, Kappel PJ, Holland GN (2005) Birdshot chorioretinopathy. Surv Ophthalmol 50(6):519–541. https://doi.org/10.1016/j.survophthal.2005.08.004
Minos E, Barry RJ, Southworth S, Folkard A, Murray PI, Duker JS, Keane PA, Denniston AK (2016) Birdshot chorioretinopathy: current knowledge and new concepts in pathophysiology, diagnosis, monitoring and treatment. Orphanet J Rare Dis 11(1):61. https://doi.org/10.1186/s13023-016-0429-8
Papadia M, Herbort CP (2012) Indocyanine green angiography (ICGA) is essential for the early diagnosis of birdshot chorioretinopathy. Klin Monatsbl Augenheilkd 229(4):348352
Reddy AK, Gonzalez MA, Henry CR, Yeh S, Sobrin L, Albini TA (2015) Diagnostic sensitivity of indocyanine green angiography for birdshot chorioretin- opathy. JAMA Ophthalmol 133(7):840–843. https://doi.org/10.1001/jamaophthalmol.2015.0822
Pepple KL, Chu Z, Weinstein J, Munk MR, Van Gelder RN, Wang RK (2018) Use of En face swept-source optical coherence tomography angiography in identifying choroidal flow voids in 3 patients with birdshot Chorioretinopathy. JAMA Ophthalmol 136(11):12881292
This work was supported by the National Institute for Health Research (NIHR) Biomedical Research Centre based at Moorfields Eye Hospital NHS Foundation Trust and UCL Institute of Ophthalmology. The views expressed are those of the authors and not necessarily those of the NHS, the NIHR or the Department of Health.
Ethics approval and consent to participate
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
About this article
Cite this article
Testi, I., Modugno, R.L. & Pavesio, C. Multimodal imaging supporting the pathophysiology of white dot syndromes. J Ophthal Inflamm Infect 11, 32 (2021). https://doi.org/10.1186/s12348-021-00261-3
- White dot syndromes
- Outer retina, retinal pigment epithelium (RPE)
- Multimodal imaging
- Fundus fluorescein angiography (FFA), indocyanine angiography (ICGA), optical coherence tomography angiography (OCT-A)
